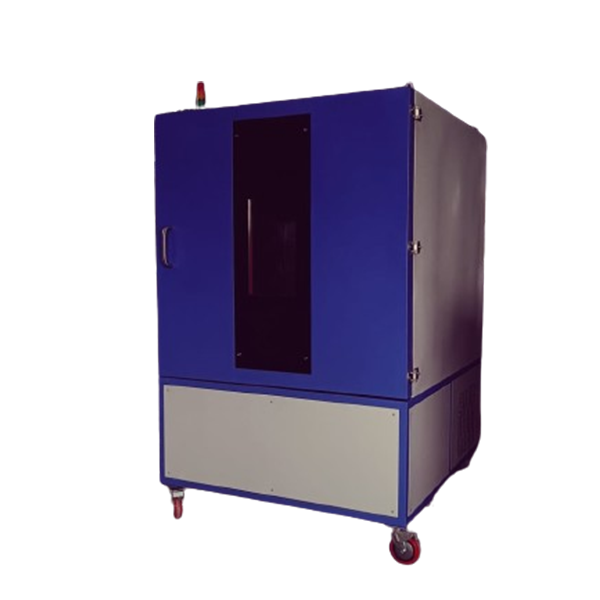

Hot & Cold Chamber / Temperature Chamber/ Thermal Cyclic Test Chamber

Available Ranges Inner Chamber Size in mm Min: 450 x 450 x 450,
Max: Customer Requirement Temperature Range Min : -70 C,
Max: 200C Inner Chamber Material SS 304, SS 316 Thickness: 0.8 , 1.0, 1.2, 2.mm Outer.

Category: Hot & Cold Chamber / Temperature Chamber/ Thermal Cyclic Test Chamber

Description
Reviews (0)

Description

Temperature range	-80°C / -40°C / -20°C to +200°C
Size	450 × 450 × 450 / 600 × 600 × 600 / 1000 × 1000 × 1000
Controller	Eurotherm / Autonics / HMI with PLC
Sensor	PT-100, RTD, Class A.
Controlling Accuracy	±1°C
Outer	MS with powder coated / SS 304.
Inner	SS 304
Door	Double walled door inner lined with SS, SS handle, lock with key and magnetic gasket, Door light, Door heater.
Insulation	PUF and Glass wool.
Compressor.	Emerson / Danfoss
Refrigerant	CFC Free
Condenser	Fin and Tube type.
Uniformity	Forced air circulation using electrical fan
Others	Tower lamp, hour meter, hooter, port hole, drain acility, specimen protection for high temp cut off.
Power supply	220V, Single Phase, 50hz/ 440V, Three Phase, 50hz.
